GAD Builder
A drawing tool for LHP Motors in Solapur. Their engineers assemble a general arrangement drawing by picking components, instead of redrawing one by one.
- In production at LHP Motors Solapur, used by 200+ engineers in daily work
- Cut drawing-customization time by roughly 60–70%
- SHA-256 fingerprinting blocks duplicate designs · SVGO compresses drawing files on upload
Where this came from

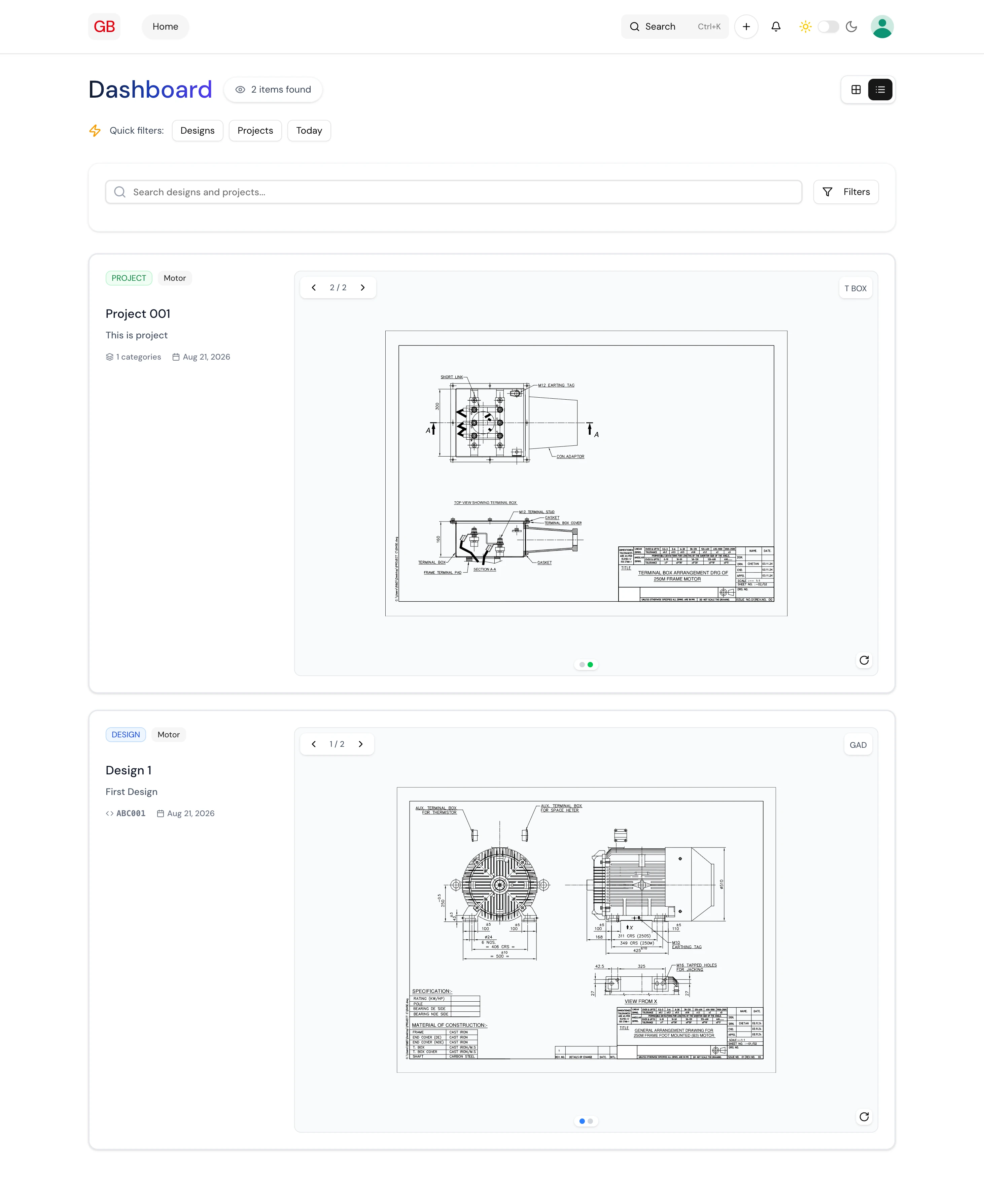

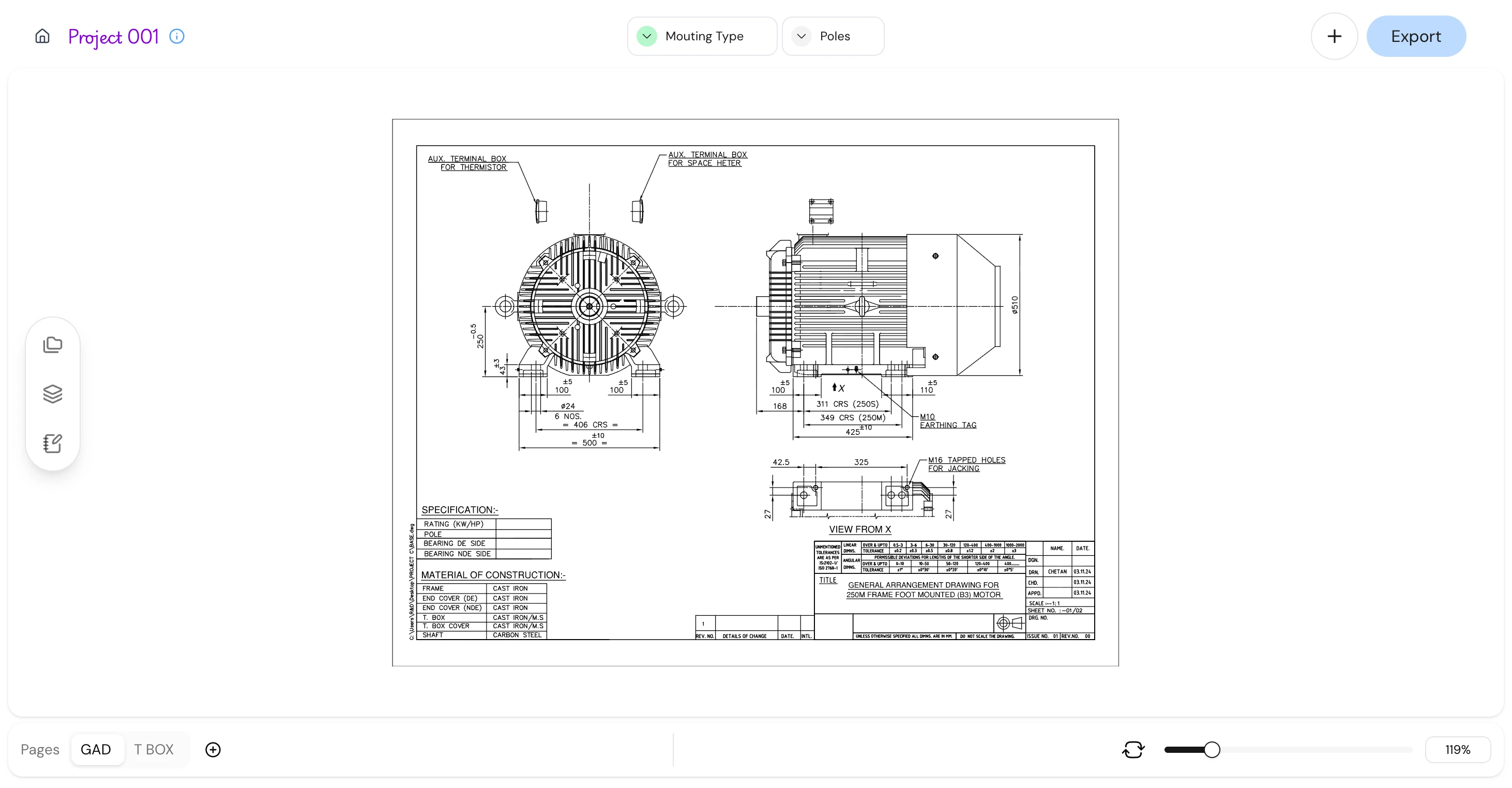

A general arrangement drawing is the master layout of a machine — a motor, a crane, the big things LHP builds. Every order is a little different, so every drawing gets customized. The old way was manual. An engineer opened the base drawing and swapped components by hand, one at a time, checking each change against the ones before it.
The catch is the number of components. There are more than a thousand of them, with options stacked on options, and a real drawing pulls together dozens. Customizing one drawing meant hours of careful, repetitive edits. Get one component wrong and the ones depending on it are wrong too.
LHP asked for something better. The pitch I made was simple to say and hard to build: put every component into a library, let a designer pick from it, and let the drawing assemble itself. Choose, test, validate, finalize — in a handful of clicks instead of an afternoon. From a fixed set of parts, an engineer could then produce an enormous number of valid combinations without drawing anything from scratch.
The three things that made it hard
Components depend on each other. Change one and a chain of others has to change with it. Mapping those relationships — and then showing them in a UI a busy engineer could actually follow — was the core problem, not a side quest.
No two designs should ever be the same. With that many combinations, redundant duplicates were a real risk, and a duplicate drawing in a production catalog is worse than useless.
It had to stay fast. One design isn't one file. It's a base drawing plus every selected component's SVG, and those add up quickly. Slow rendering would have killed the whole point of doing this on the fly.
The build
Modeling dependencies as parent-child levels
The situation: a flat list of a thousand components with hidden relationships between them. If I stored them flat, every dependency check becomes a search across everything.
The decision: separate components into levels and give them an explicit parent-child structure. A selection isn't a single value — it's a path, like component.selectedOption.nestedOption, walked recursively. The ComponentTracker extracts every selected path from a design and knows which ones are nested inside which.
Why this way: I rejected the flat approach because dependency logic would have been scattered everywhere. With a tree, "what depends on this" is just "what sits under this path" — a startsWith check on the path string, nothing more.
What it produced: a locking system. When a design is finalized, its selection paths get snapshotted. After that, the parts that define the original design are locked — you can't quietly edit or delete a component the drawing depends on, but you can still change everything that's genuinely optional. The rules live in getComponentLockStatus.
A fingerprint that makes duplicates impossible
The situation: two engineers, working separately, pick the same components. Without a guard, that's two identical drawings in the catalog.

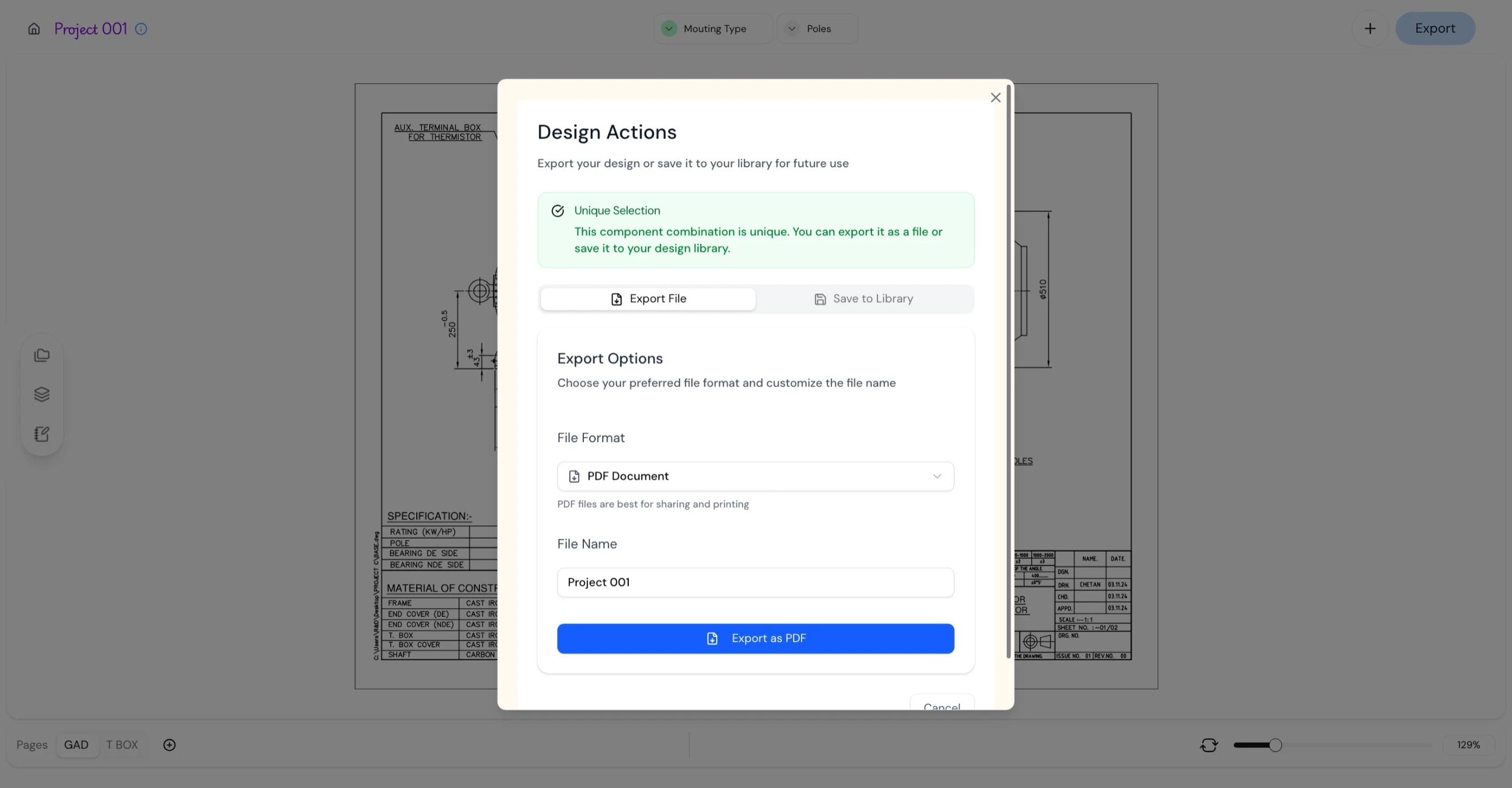

The decision: fingerprint each design by its content. I take every selected component's file path plus the base drawing's pages, sort them so order can't matter, join them into one string, and run SHA-256 over it. That gives a 64-character hash. The hash goes on the design; a second design with the same combination produces the exact same hash, and the system refuses it. The code lives in hash.ts.
Why this way: I tried a few approaches before this stuck. An earlier home-grown hash function is still sitting in the tracker, commented as "in production, use a proper hash library" — that note is me, reminding me the naive version wasn't enough. Content-addressing was the thing that worked exactly how the requirement wanted: same parts in, same identity out, every time.
What it produced: duplicate designs became structurally impossible rather than something a person had to catch.
Squeezing the drawing files
The situation: SVG exports from CAD tools are bloated. A single component could land around 50KB, and a design stacks many of them.

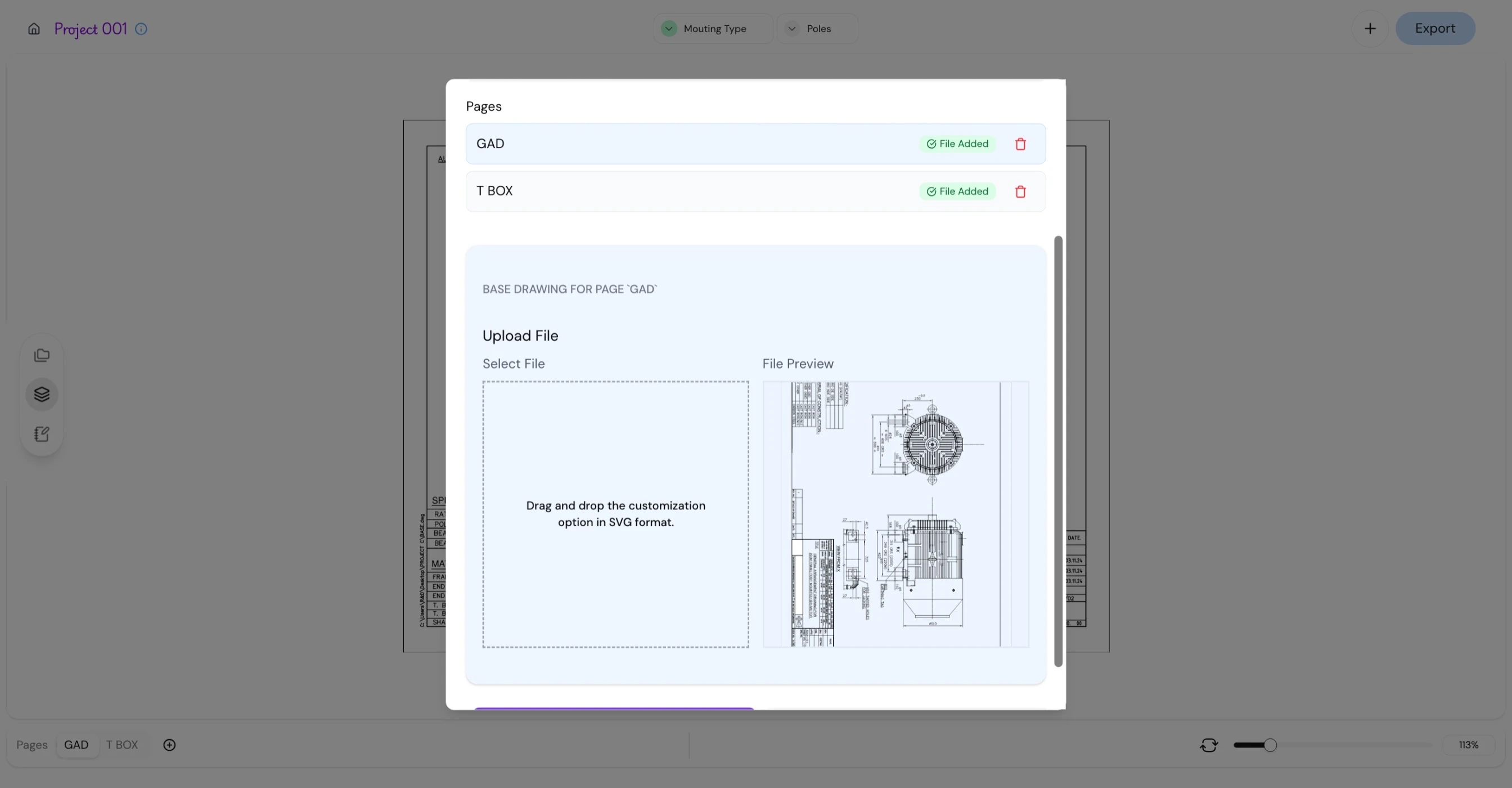

The decision: run every uploaded SVG through SVGO on the server before it's ever stored, in an upload middleware that sits in the request path. I kept removeViewBox and removeDimensions off on purpose — strip those and the drawings scale wrong, which for engineering drawings is the whole ballgame.
What it produced: files that were a fraction of their original size, so a design assembled from dozens of them still loaded quickly. On the client I paired that with the usual React discipline — memoization, careful lifecycle handling, trimming server round-trips — and added indexing on the database side.
Under the hood

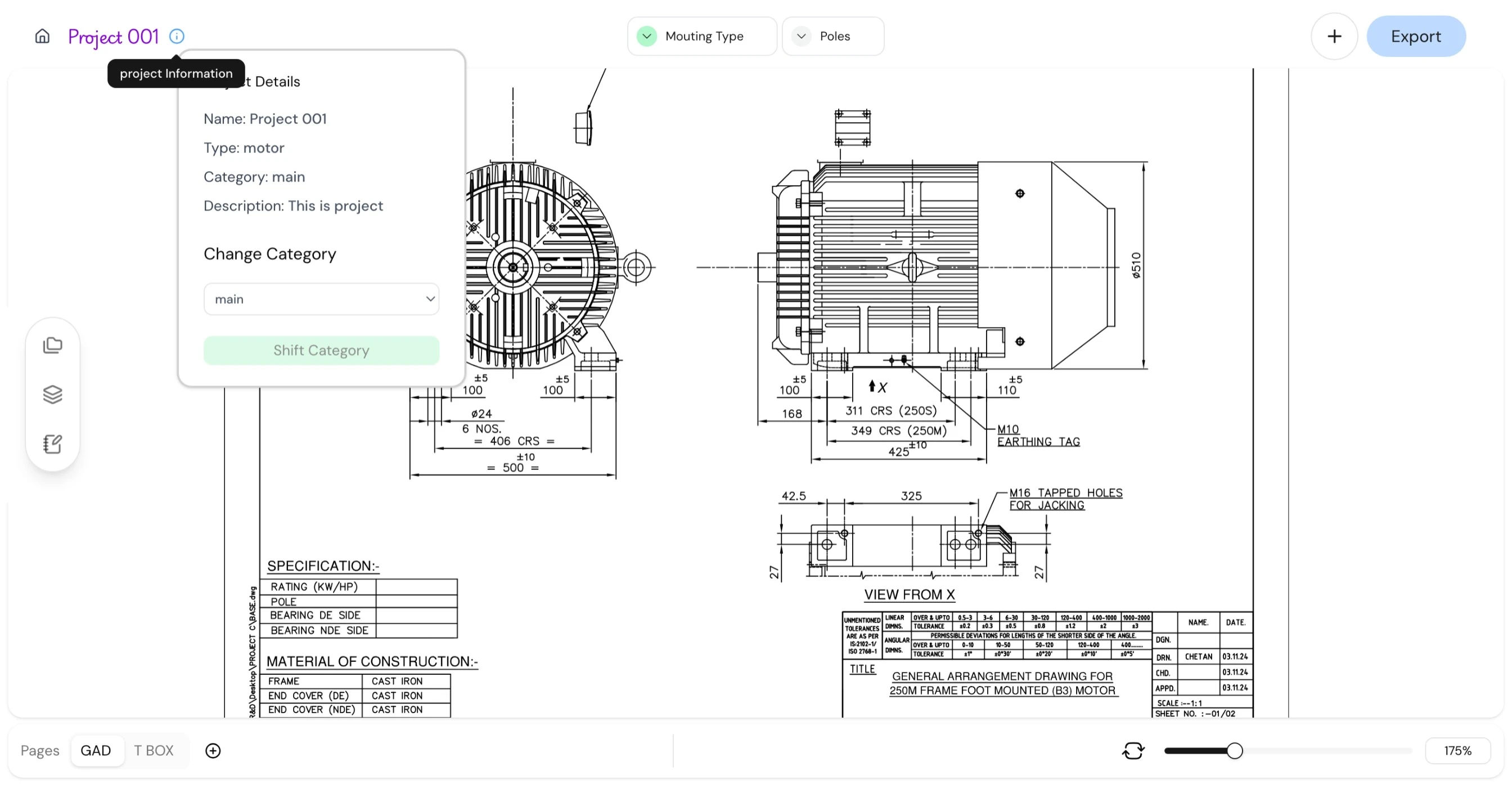

Three surfaces share one codebase. The web client is React 19 with Vite, Zustand for state, and Radix primitives for the UI. The API is Express and TypeScript on MongoDB through Mongoose, with JWT-and-bcrypt auth and Multer for the drawing uploads. There's also an Electron desktop build, which quietly swaps to a HashRouter when it detects it's running from the file system, so the same app works offline on an engineer's machine. Data is multi-tenant, organized around five models — organization, project, design, revision, user — with designs carrying a sourceDesign and derivedDesigns so you can trace where a drawing came from. It's deployed on Railway via Docker.
What shipped
It went into production at LHP Motors and, by the counts I have, 200-plus engineers use it in their day-to-day work. The task it was built for — customizing a general arrangement drawing — got 60–70% faster. That's the honest headline: a bespoke tool, doing one hard job well, for one company that needed it.
Looking back
The part I'm proudest of isn't a feature — it's that I built the whole thing solo, back when I couldn't lean on an AI assistant to reason through the architecture for me. Every dependency model and data structure came out of my own head, and being that specific to LHP's process sharpened me in ways a generic project wouldn't have.
If I'm honest about what I'd change: the hardest stretch wasn't any of the algorithms — it was that some engineers just couldn't use the first versions the way I intended. That stung, because the logic was right and the tool still failed the people holding it. I revised the UI over and over until it got genuinely easy. I should have watched real engineers use an early build far sooner instead of trusting that a correct system would feel usable. It doesn't. You have to go check.
